B-Series 7-inch Industrial Teach Pendant
B0x-TX1A1V
Follow frequency：次
Product type：B0x Series
Name | B05-TX1A1V | |
System Specifications | Input Voltage | 24V DC |
Display Screen Size | 7-inch | |
Enclosure Material | High-Strength Corrosion-Resistant Plastic | |
Maximum Supported Axes | 2 Groups | |
Maximum Expandable Axes | 9 Axes | |
DA/AD | Expansion Module Board (Expandable up to 32 Groups) 14-Bit | |
Control Method | Position Control, Speed Control, Torque Control | |
Operating System | RT Linux | |
Memory | 2GB | |
Program Capacity | 8GB | |
Mouse/Keyboard | Options | |
Pre-Read Bytes | 8000 Cycles/Second | |
Minimum Control Unit | 0.001mm | |
Transmission | USB/LAN/WIFI | |
MES Module | Supported (MODBUS Protocol, Custom Protocol, SDK) | |
Acceleration/Deceleration Type | S-Curve Acceleration/Deceleration, Jerk Control | |
Network Server | Supported (Multiple Slave Functionality) | |
WIFI Communication | Supported (Optional) | |
Bus Functionality | EtherCAT | |
I/O | Standard: 16/16 Maximum Expansion: 512/512 | |
Industrial Internet of Things (IIoT) | Supported | |
Program Functionality | Programming Instructions (G-codes) | Compliant with International Standards |
Macro Program Coding Standard | Macro B | |
Background Programming | Supported | |

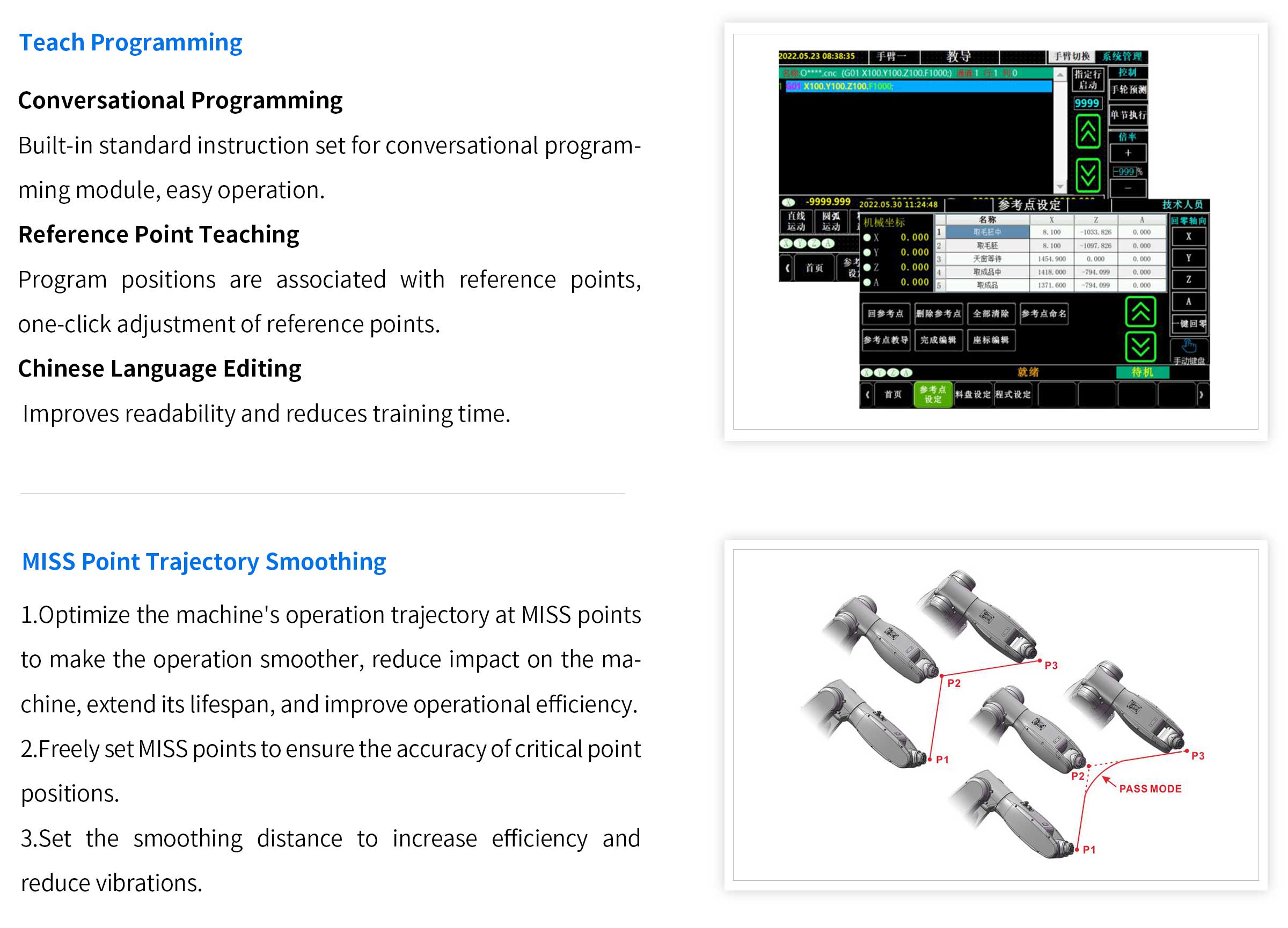

Conversational Intelligence | Supported | |

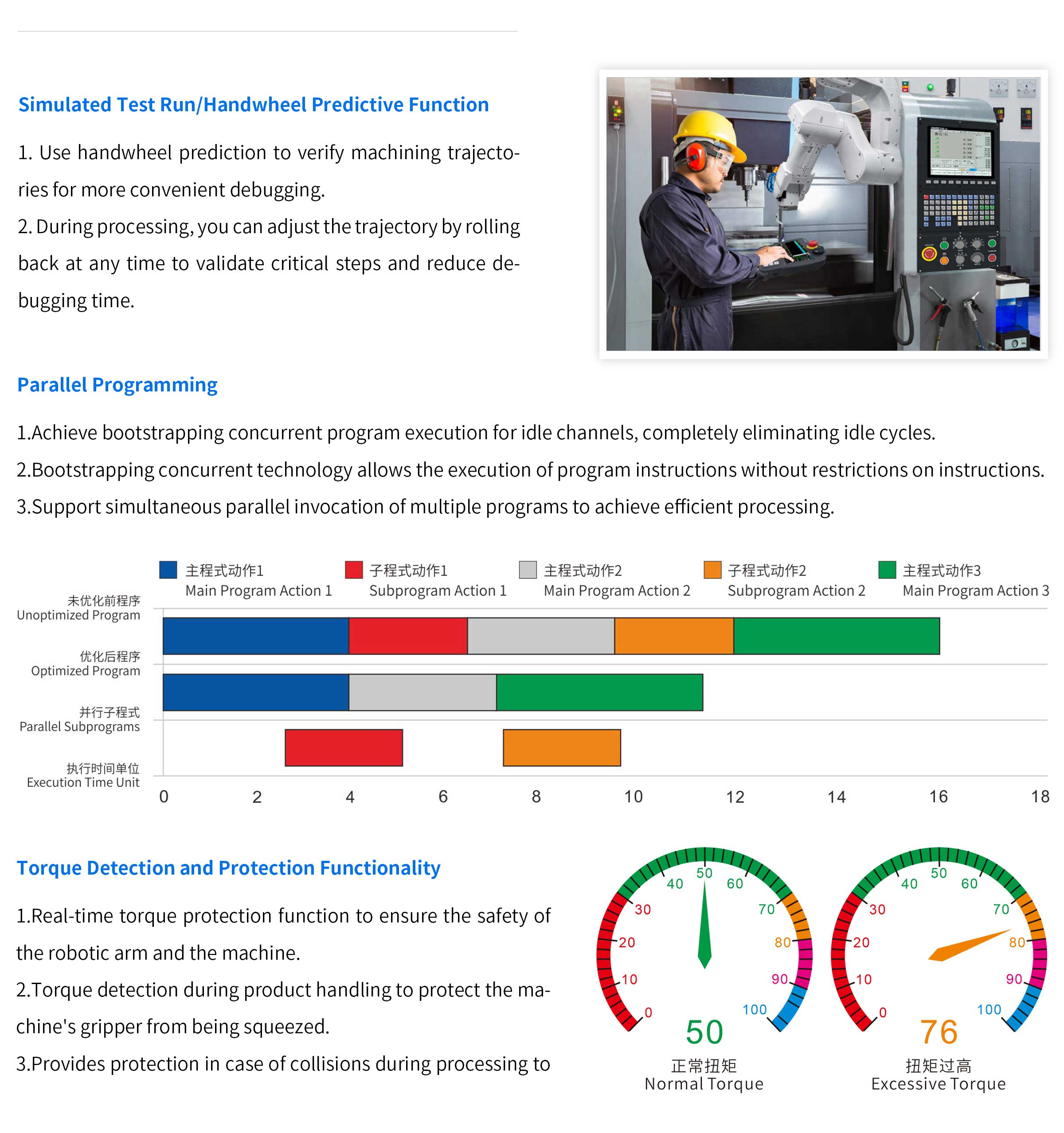

Parallel Program Function | Supported | |
Program USB Transfer | Supported | |
Automatic Program Error Checking | Supported | |
Multi-channel | Multi-channel Functionality | Supported (Optional) |
High Speed and High Precision | JERK Control | Supported |
Automatic Cornering Speed Control | Supported | |
Circular Arc Speed Limitation | Supported | |
URBS Fitting | Supported | |
Compensation Function | Taper Compensation | Supported |
Reverse Backlash Compensation | Supported | |
Corner Radius Compensation | Supported | |
Feedforward Compensation | Supported | |
Tilted | Tilted Axis Machining | Supported |
Tilted Plane Machining | Supported | |
Auxiliary Function | Custom Boot Screen | Supported |
Custom G/M Codes | Supported | |
Generic Axis Expansion | Support (Optional EtherCAT Axis Card) | |
Other Expansion Modules | ADC/DAC/Temperature Control | |
IO Redefinition Function | Supported | |
DNC Machining | Supported | |
Scale Scaling | Supported | |

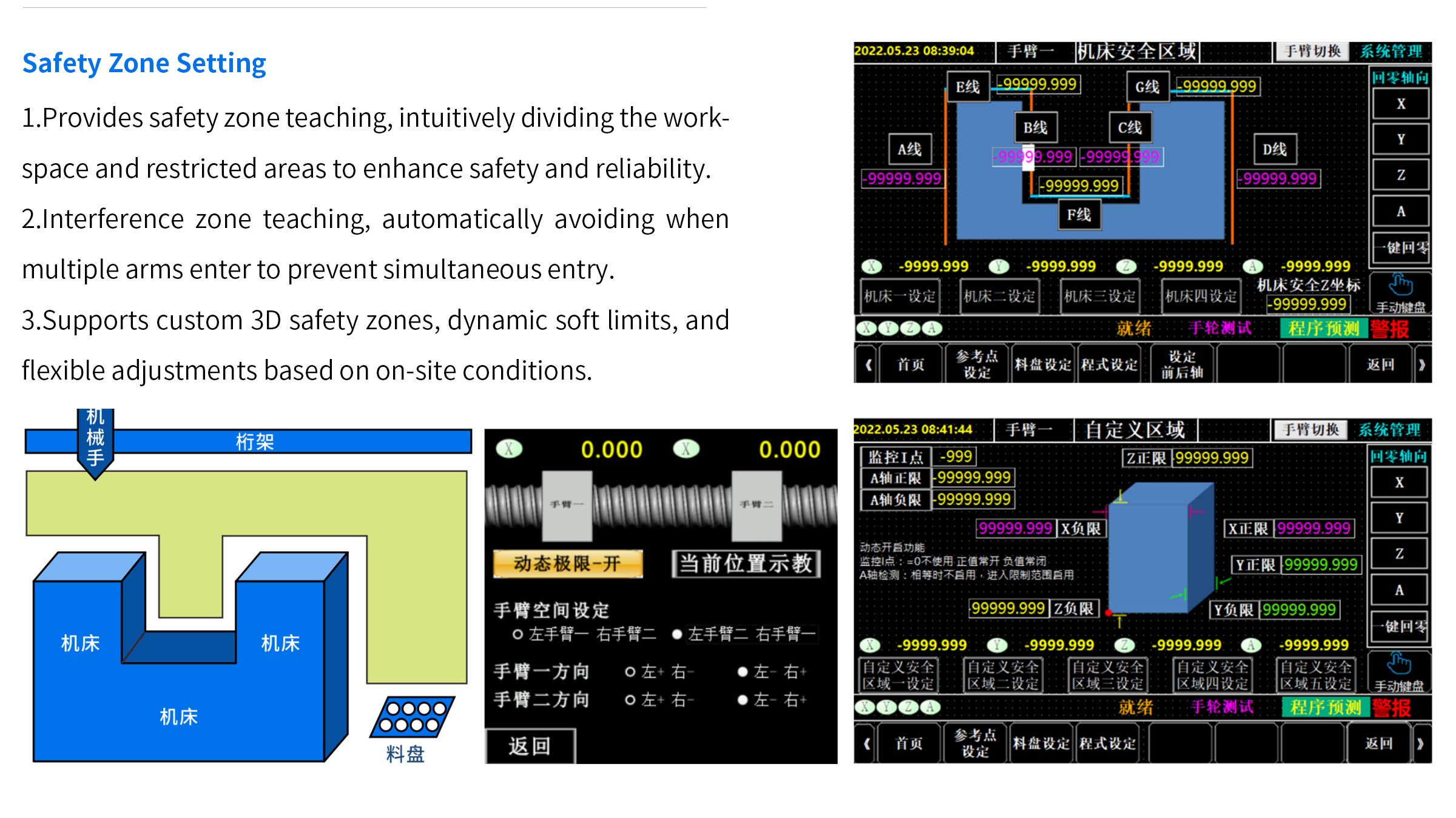

Protection Function | Safety Door, Soft/Hard Limits, Safety Zone Protection, Torque Protection | |
Multi-Function Handwheel | Supported | |
Handwheel Program Prediction | Supports Handwheel Prediction/Retraction Function | |
Program Restart Function | Program Breakpoint Automatic Search and Restart, Customized Restart | |
Graphic Simulation | Graphical Preview Before Program Execution, Dynamic Plotting During Program Execution | |
Authority management | Multi-Level Parameter Access Control | |
Calendar Locking | Supported | |
Axis Load Monitoring | Supported | |
Oscilloscope Monitoring | Real-time Monitoring of System Commands and Servo Feedback Curves | |
Following Error Detection | Supported | |
Data Backup | Program Backup, Parameter Backup, Tool Compensation Backup | |
Quick G31 Signal | Not Supported | |
Password Protection | Comprehensive Password Protection for Enhanced Security | |
Parameter Retention on Power Loss | Supported |
