B Series 7-inch Lathe CNC System (Horizontal)
B0x-NX1A1H-T2
Follow frequency：次
Product type：B0x-200T Series
Follow frequency：次
Product type：B0x-200T Series
Name | B01-200T Series | |
B01-200TA | ||
System Specifications | Common Models | B01-NX1A1H-T2 |

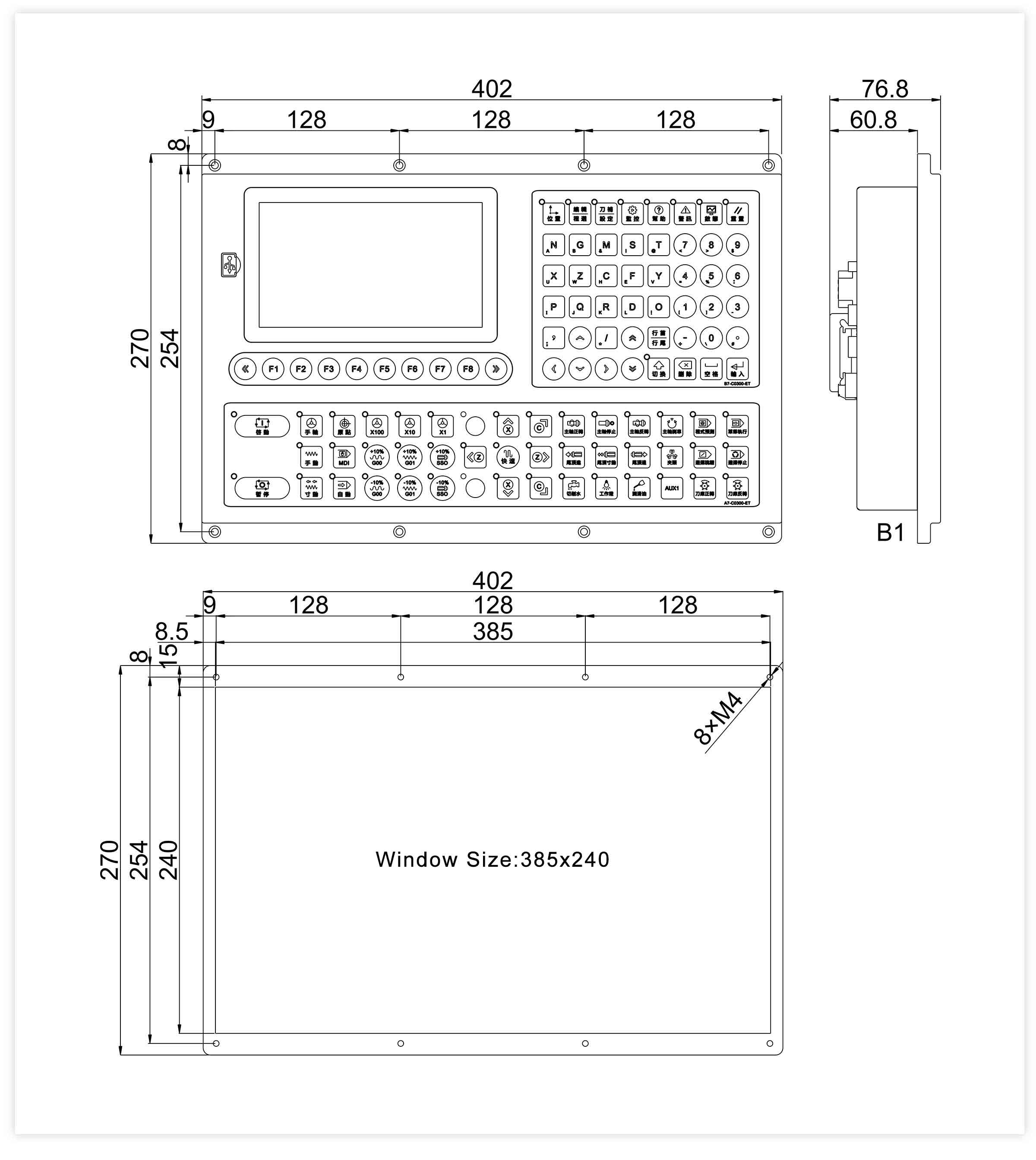

Installation Method | Horizontal Installation (Optional Auxiliary Plate) | |
Maximum Axis Count (Including Main Spindle, Optional) | 4 | |
Maximum Channel Count (Optional) | 1 | |
Maximum Linked Axis Count per Single Channel | 2 | |
Maximum Main Spindle Count per Single Channel | 1 | |
Display Screen Size | 7 Inches | |
Application Scenarios (Axial Distribution） | Single Channel: XZC/XZAC | |
DA/AD | Optional Expansion | |
Operating System | RT Linux | |
Memory | 2GB | |
Program Capacity | 8GB | |
Prefetch Word Count | 1000 Block/S | |
Maximum Tool Compensation Groups | 40 Groups | |
Transmission | USB/RS485/LAN/WIFI | |
Bus Servo | EtherCAT | |
Bus Spindle | Not Supported | |
Standard I/O | Bus Axis Card (Including 2 Pulse Ports): I24/O16 Bus IO (Excluding Pulse Ports): I16/O16 | |
Maximum Expandable I/O | I32/O32 | |
IoT Industrial Internet of Things | Supported | |
Absolute Value Function | Supports EtherCAT | |
Program Functionality | Programming Instructions (G-codes) | Adherence to International Standards |
Macro Program Coding Standard | Supported (Macro B, Macro C) | |
Background Programming | Supported | |
Conversational Intelligence | Supported | |
Program USB Transfer | Supported | |
Automatic Program Error Checking | Supported | |
Program Lock Feature | Limited Program Editing (Optional) | |
Synchronous Axes Control | Simultaneous Main Spindle Threading | Not Supported |
Dual-Channel Main Spindle Synchronization | Not Supported | |
Axis Coupling / Swapping / Blending | Not Supported | |
Robotic Arm | Independent Control of Robotic Arm Channels | Not Supported |
Tool Changer | Servo Tool Changer | Not Supported |
System Axis-Controlled Tool Changer | Not Supported | |
High-Speed and High-Precision | Dynamic Positioning of Main Spindle (C-Axis) | No Need to Stop for Switching Modes; Direct Positioning Execution (Requires Servo Main Spindle) |
Rapid Retraction of Tool for Tapping | Supported | |
Continuous Mode Between Segments | Supported | |
Full Closed-Loop Control Function | Not Supported | |
Compensation Function | Taper Compensation | Supported |
Reverse Backlash Compensation | Supported | |
Corner Radius Compensation | Supported | |
Bidirectional Screw Error Compensation | Not Supported | |
Feedforward Compensation | Not Supported | |
Cooling and Heating Temperature Compensation | Not Supported | |
Auxiliary Function | Custom Boot Screen | Supported |
Custom M Codes | Supported | |
Custom G Codes | Not Supported | |
Mixing Bus Axes with General Purpose Axes | Not Supported | |
IO Redefinition Function | Supported | |
Tilted Axis Machining | Not Supported | |
Tilted Plane Machining | Not Supported | |
DNC Machining | Not Supported | |
Proportional Scaling | Supported | |
Acceleration-Deceleration Type | Linear Type (Constant Acceleration), S-Curve Type (Constant Jerk) | |
Tool Life Management | Time Limitation / Count Limitation Management | |
Protection Function | Safety Door, Hard Limits, Soft Limits, Unclamped Chuck Detection, Tool Changer Detection | |
Handwheel Predictive Control | Support for Handwheel Prediction/Handwheel Retraction Function | |
Handwheel Interruption | Supported | |
Restart Function | Automatic Program Breakpoint Recovery and Customized Restart | |
Multi-Function Handwheel | Supported | |
Graphic Simulation | Graphic Preview Before Program Execution, Dynamic Plotting During Program Execution | |
Authority management | Parameter Authorization Management | |
Perpetual Calendar Locking Mechanism | Supported | |
Axial Load Monitoring | Supported | |
Oscilloscope Monitoring | Real-time Monitoring of System Commands and Servo Feedback Waveforms | |
Following Error Detection | Supported | |
Spindle Speed Reach Detection | Supported | |
Data Backup | Program Backup, Parameter Backup, Tool Compensation Backup | |
Cutting Function | Parabolic Interpolation | Supported |
Ellipse Interpolation | Supported | |
Cylinder Interpolation | Supported | |
3d Circular Arc Interpolation | Not Supported | |

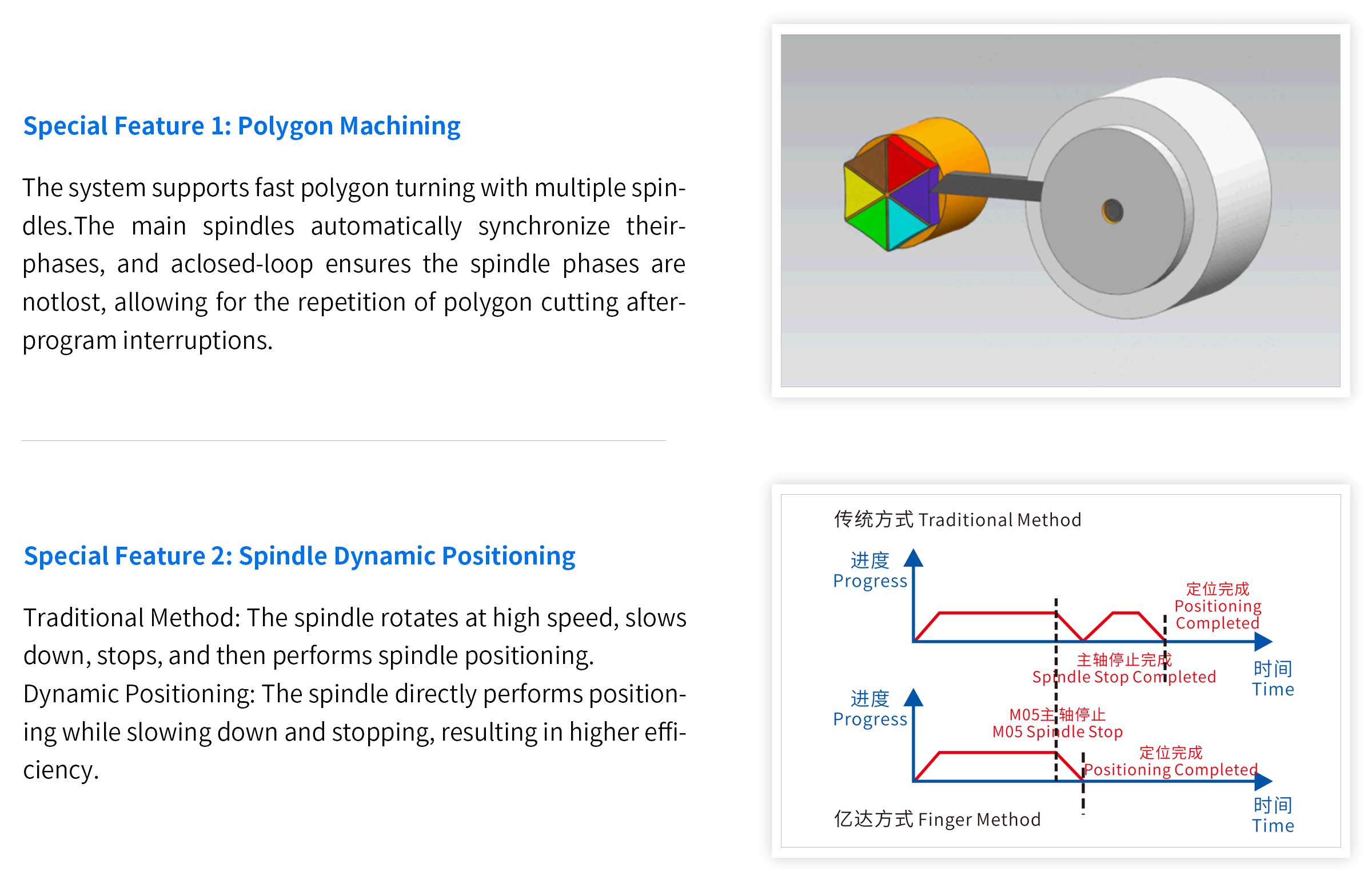

Polygon Cutting (fly Cutting) | Supported | |
Polar Coordinate Interpolation | Supported | |
Thread Tapping | G84/G88 | |
Thread Cutting | Support For Thread Cycle Turning, Multi-start Threads, Helical Threads, Variable Pitch Threads, And Other Thread Cutting Operations. | |
Chipping Breakage Turning | Not Supported | |
Programmable Tailstock | Programmable Tailstock | Not Supported |
